1. How Each Technology Works
Membrane-Based Nanobubble Generators
Membrane systems force gas through a porous hydrophobic membrane (often PTFE or similar) into flowing liquid on the other side. Nanobubbles form at membrane pores when the gas–liquid interface becomes unstable and detaches microscopic bubbles into the stream.
Mechanism highlights:
Bubble size is largely dictated by pore size (typically 20–100 nm).
Gas enters the liquid via diffusion and interfacial shear.
Often used with low liquid shear, meaning the membrane controls bubble size rather than turbulence.
Vacuum-based gas mixing Nanobubble Generators

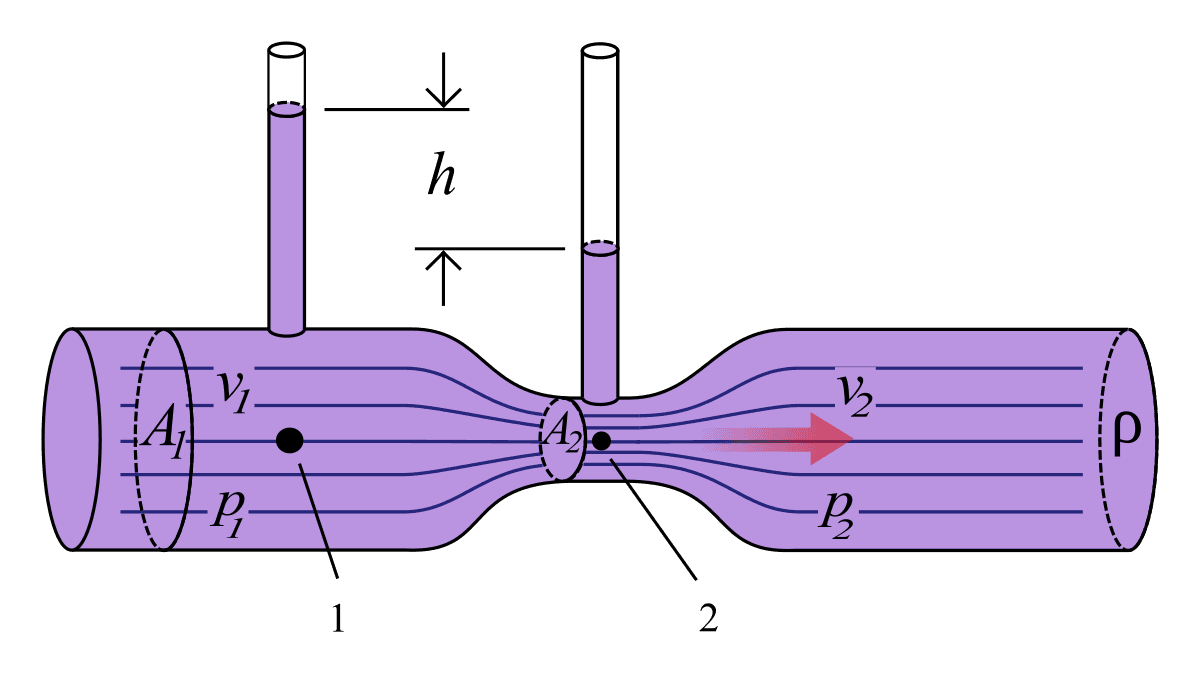

Vacuum-based gas mixing injectors ("Venturi injectors") rely on the Venturi effect: water acceleration through a narrow throat creates a negative pressure zone, drawing gas into the system. Rapid shear, cavitation, and pressure fluctuations then break gas pockets into micro- and nano-scale bubbles.
Mechanism highlights:
Nanobubble formation is driven by high shear forces, pressure differential, and cavitation.
More turbulent and energetic compared to membrane systems.
Bubble size distribution is broader unless post-mixing or recirculation is used.
2. Bubble Size & Distribution
Feature | Membrane-Based | Venturi-Based |
|---|---|---|
Control over bubble size | High | Moderate |
Typical bubble size | Very consistent, often 50–150 nm | Wider range, 100–500 nm depending on setup |
Size distribution | Narrow | Broad |
Scalability of size control | Excellent due to pore-size design | Variable; depends on pump, pressure, geometry |
3. Energy Consumption
Membrane systems often require:
Moderate water pumping pressure
Additional gas pressure (to overcome membrane resistance)
Venturi systems require:
High-velocity water flow
Strong pumps to generate pressure differential
Which is more efficient?
At low flow rates, membrane systems can be more energy-efficient.
At high flow rates or industrial settings, Venturi injectors are often more energy-competitive because they leverage existing hydraulic energy.
4. Maintenance Considerations
Membrane-Based:
Membranes foul, especially in dirty water.
Clogged up membranes require chemical or mechanical cleaning.
Membrane-based systems drift in performance as pores foul or degrade
Membrane replacement is a recurring cost.
Venturi-Based:
Very robust, few moving parts.
Rarely clog; suitable for high-solids or organic-rich water.
Minimal maintenance beyond pump inspection.
Summary: Venturi systems win on maintenance in most real-world conditions.
5. Gas Transfer Efficiency in Real Conditions
Membrane systems show high efficiency in clean water on paper, but their real-world efficiency declines quickly as membranes foul.
Venturi performance is extremely stable in all conditions.
6. Durability & Operational Environment
Category | Membrane-Based | Venturi-Based |
|---|---|---|
Dirty water tolerance | Low–moderate | High |
Chemical tolerance | Depends on membrane | Very high |
Mechanical durability | Moderate | Very high |
Long-term reliability | OK with high quality water | Excellent, even with poor water |
In agriculture, aquaculture, and wastewater settings where particulates are common, Venturi systems provide greater reliability.
7. Cost Comparison
Membrane-Based:
Higher initial cost (membrane modules)
Higher maintenance and replacement cost
Efficient for targeted or precision applications
Venturi-Based:
Lower cost hardware
Lower maintenance cost
Better cost-per-m³ of water treated
8. Application Suitability
Membrane-Based – Best for:
High-purity water systems
Lab or pilot-scale research
Precision nanobubble applications
Medical or pharmaceutical systems
Small aquaculture or hydroponic setups
Venturi-Based – Best for:
Large-scale aquaculture
Agriculture/irrigation systems
Wastewater treatment
Lakes, ponds, and environmental remediation
Industrial cleaning or high-flow processes
Conclusion
Both membrane-based and Venturi-based nanobubble generators have distinct strengths:
Membrane systems deliver tight control over bubble size, high gas-transfer efficiency, and good performance in clean water, making them ideal for precision or specialty applications.
Venturi systems offer robustness, low cost, high scalability, and excellent performance in real-world environments, making them the preferred choice for agriculture, aquaculture, and wastewater treatment.
A Word From Our Founder
Questions about membrane-based nanobubble generators come up frequently during technical calls with our clients and prospects. And rightfully so—before committing to a major purchase, we always advocate for complete transparency around the technologies used by both us and our competitors.
Having been part of the nanobubble industry for many years, my experience is that membrane-based generators can be effective in certain controlled environments, but they are difficult to set up and challenging to maintain at industrial scale. Reliability is something we do not compromise on at Waboost, and this is where Venturi-based generators stand out. They are simple, robust, and easy to service. With no moving parts, they do not clog, and they require no cleaning or backwashing.
Consistency over years of operation is essential. From our experience, vacuum-based gas mixing delivers the same performance day after day.
Bostjan Veronik, CEO of Waboost
